Hi William, I just recently purchase the new V6e of the 202U for a Predator 212 engine remote start, I’m looking for some help regarding on how to wire the unit. Do you have any documentation that can help?
Thank you.
Hi,
Would you please send a link to your device’s manual? so I can check further?
Thanks.

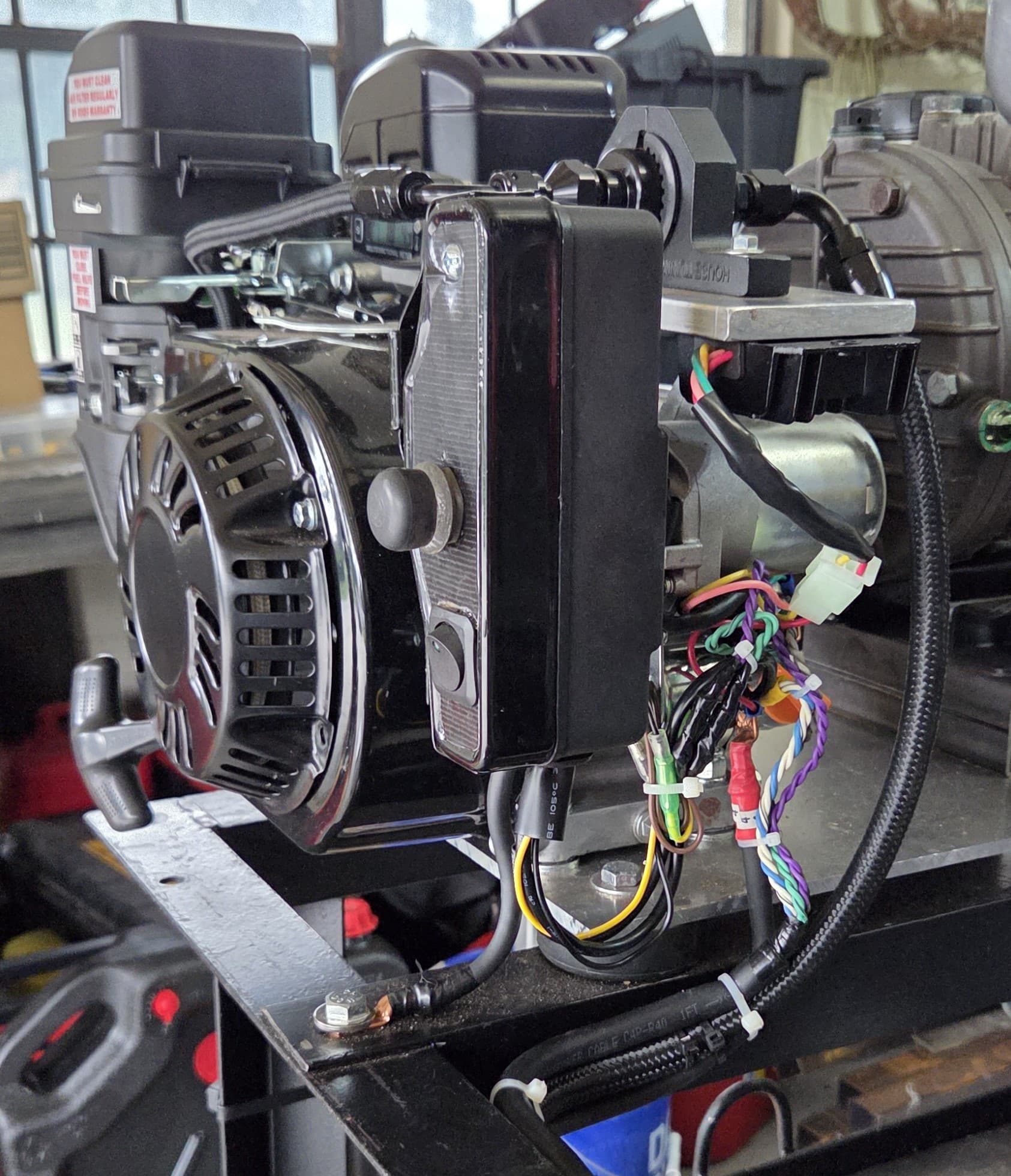

Hi William, thank you for your prompt response, after a few trial and errors and gathering as much information as possible, I made this configuration, tested and it’s working flawlessly. Tomorrow I will update you with more testing results, it’s almost midnight here and I have to work at 06:00.

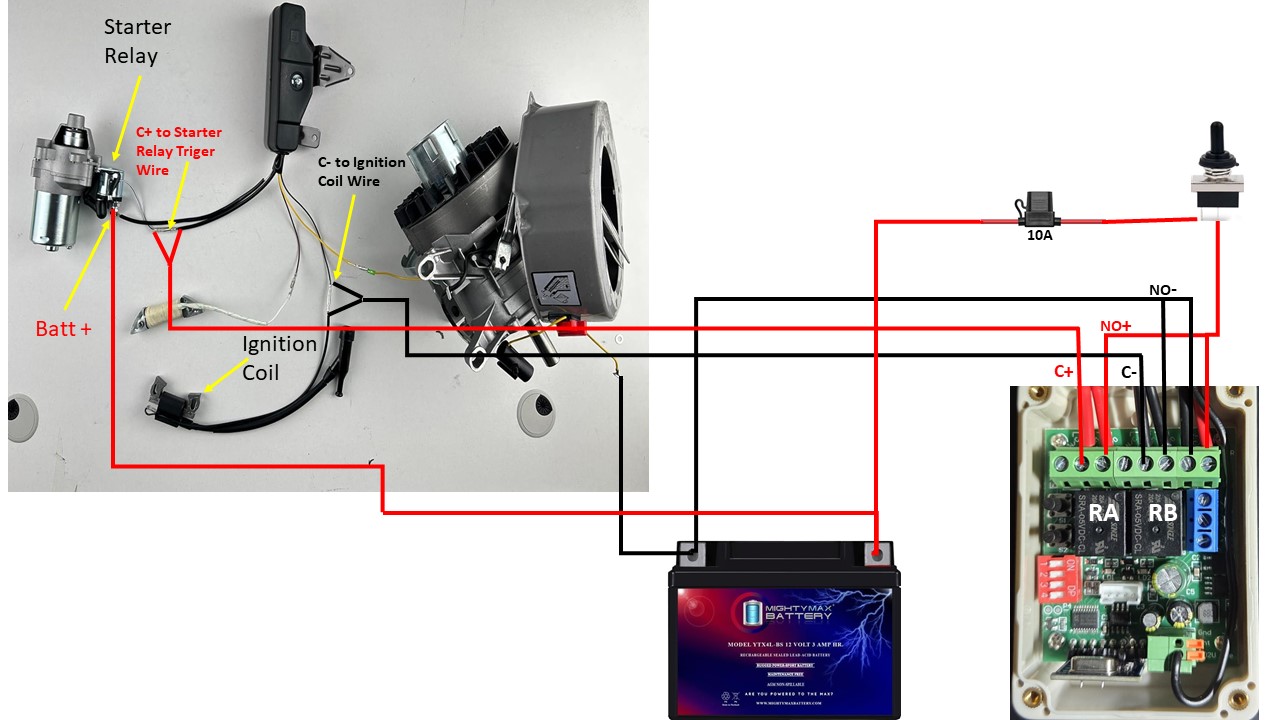

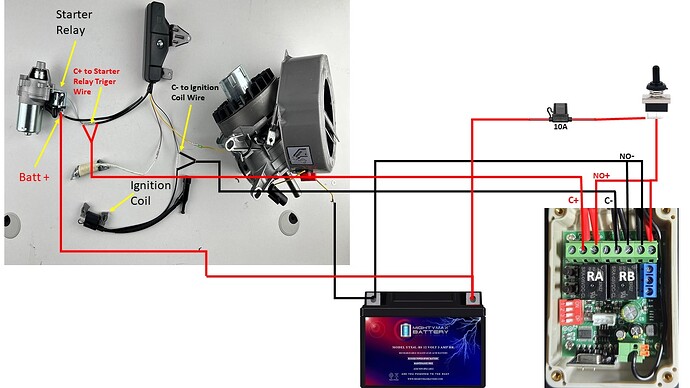

But you can start checking this diagram and see if I have to made adjustments.

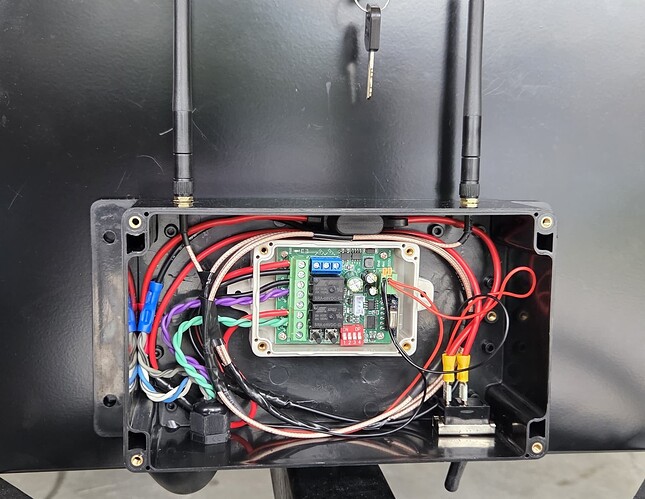

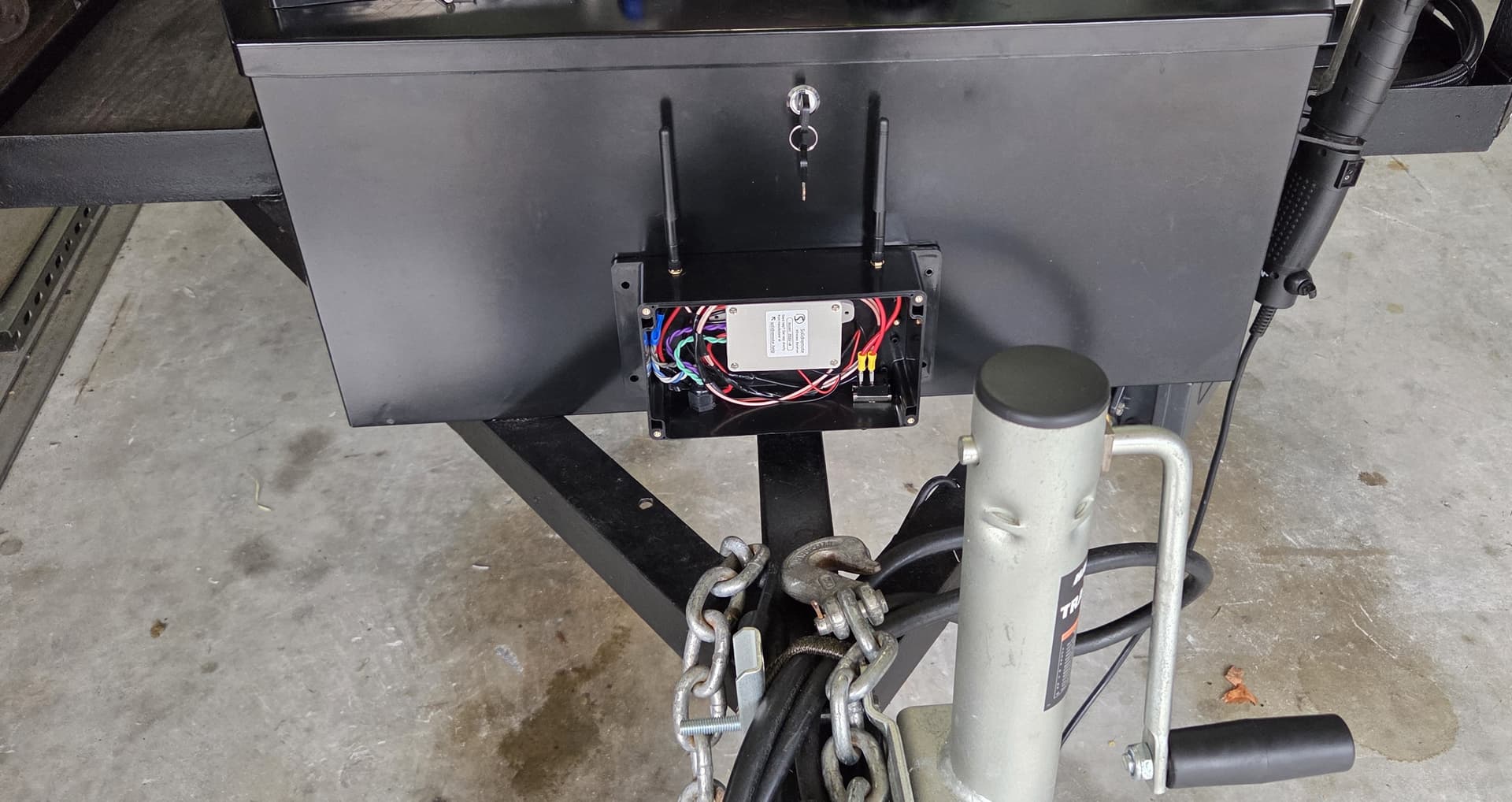

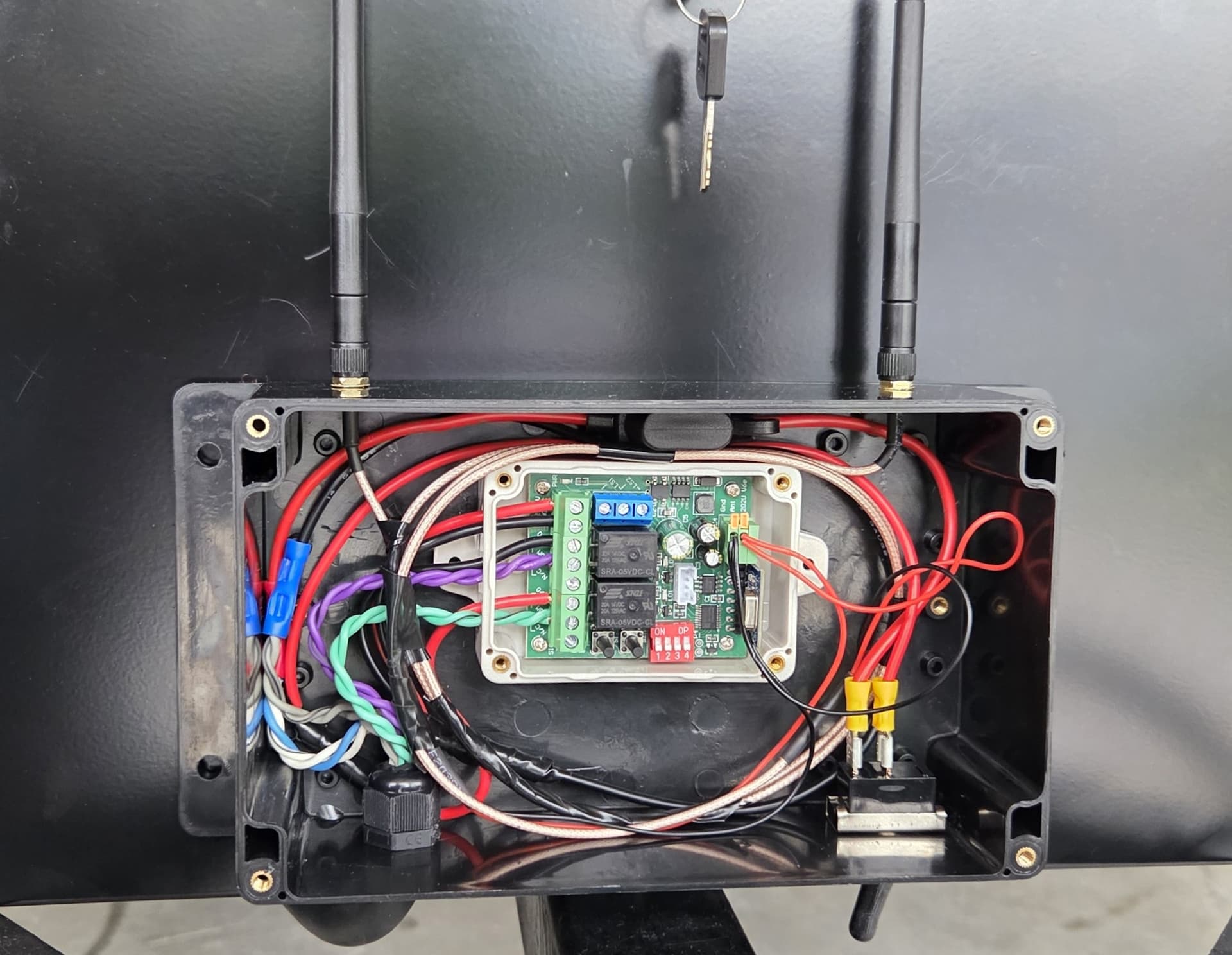

Everything came out perfect for my situation, the distance test was very good, 284 ft., after the 2 Antennas installations. Now I have to program the Relay 2 for 5 or 8 seconds, that way I don’t have to keep B press every time I have to stop the engine.
Thank you for your photos!
Glad to hear that the receiver works for your application,
and please let me know if you have any questions in future.
